2017 TEVO Tornado 3D Printer Fully Assembled 3D Printer Full Aluminum Frame Large Printing with Titan extruder Impresora 3D

FOB Reference Price:Get Latest Price
US $258-265 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TEVO
Model Number:
TEVO Tornado, TEVO Tornado
After-sales Service Provided:
Overseas service center available
Voltage:
110/220V
Usage:
3D printer
Weight:
23KG
Certification:
CE. FCC . ROSH
Automatic Grade:
Automatic
Color & Page:
3D Printer
Condition:
New
Dimensions(L*W*H):
66*56*31cm
Gross Power:
250W
Plate Type:
3D Printer
Color Print Speed:
80mm/s- 200mm/s
Printing Size:
300*300*400mm
Layer Thickness:
0.05-0.4mm
Nozzle Diameter:
Standard 0.4mm(can be changed to 0.3/0.2mm)
Filaments:
1.75mm PLA ABS TPU Copper Wood Carbon
Software supporting:
PROE Solid-works UG 3d Max Rhino 3D design
File Format:
STL/OBJ/G-Code
Body Structure:
Imported V-Slot Aluminum Bearings
Printing Method:
TF card/ On Line / Off Line
Type:
Digital Printer
Packaging & Delivery
Packaging Details
wooden carton or standard carton
Port
HK/Shanghai/Guangzhou
Lead Time :
3-5 Days

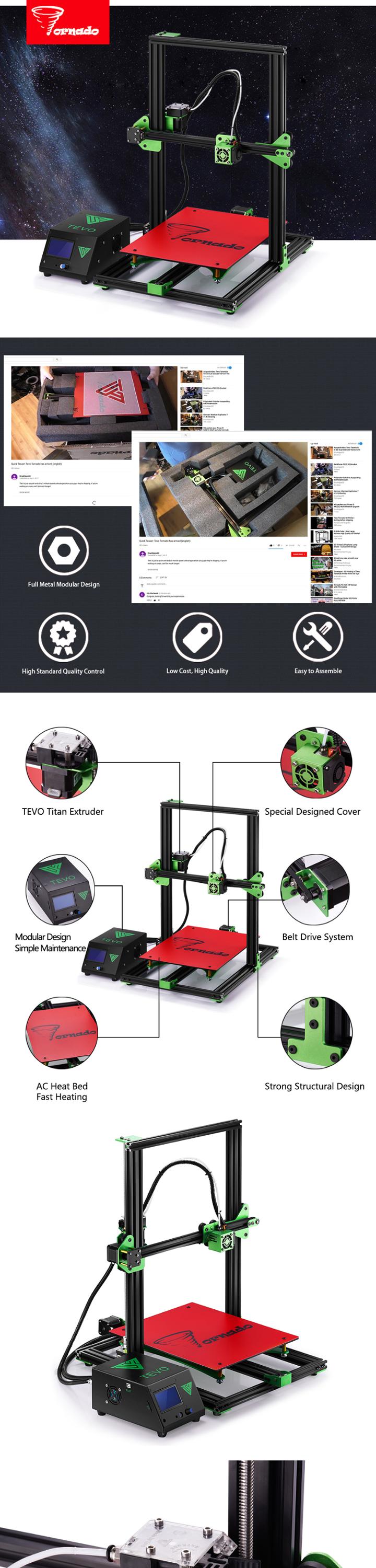

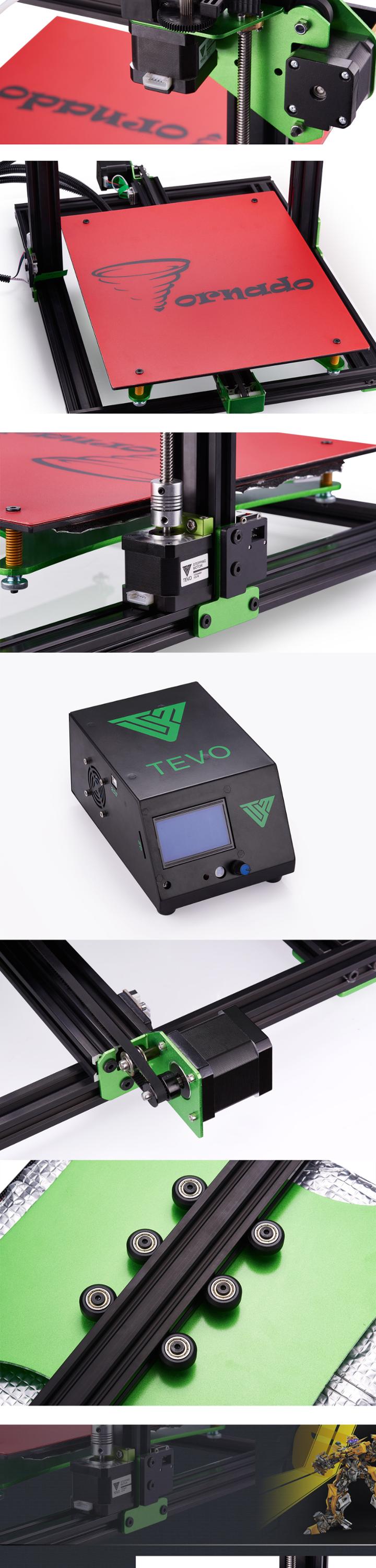

Features:
Large Print Size: 300X300 X 400mm
Max Print Speed: 200mms, Save Time
High Transverse speed
High accuracy printing quality, down to 50 microns.
Bowden style Titan Extruder with improved hotend design
AC heatbed Fast heating.
95% Assembled, easy for installation.
Very stable structure with Full Aluminum Frame design.

Compact and small size all-in-one Powerbox with LCD control panel.

Titan extruder




Technical Specifications:

Layer resolution of 50 microns.
MAX Printing Speed: 150 mm/s.
Build size: 300X 300 X 400mm.
Full Metal E3D Bowden long distance Extruder with Titan.
Material type: PLA, ABS, PETG, Wood, PVA and Flexible Filaments .
Material specifications 1.75mm in diameter.
Positioning accuracy: Z 0.004mm, XY 0.012mm.
Printing Color: Single color.
Nozzle diameter: 0.4mm (customized 0.3mm/0.2mm).
Recommended extruder temperature: 210°C (the maximum can be set to 260°C).
Heating plate temperature: 60-110°C (proper winter warming and summer appropriate cooling).
Best ambient temperature: ≥25°C.
Power requirements: 220V, 250W, 50Hz, 0.89A.
Connection: TF card or USB.
The file print format: STL,G-Code.
Compatibility: Windows, Linux, Mac.
CE, FCC specifications: CE, FC, ROHS.
Device weight: 14kg.
Equipment size: 560X 600X620mm.
Package size: 660X 560X 310mm
