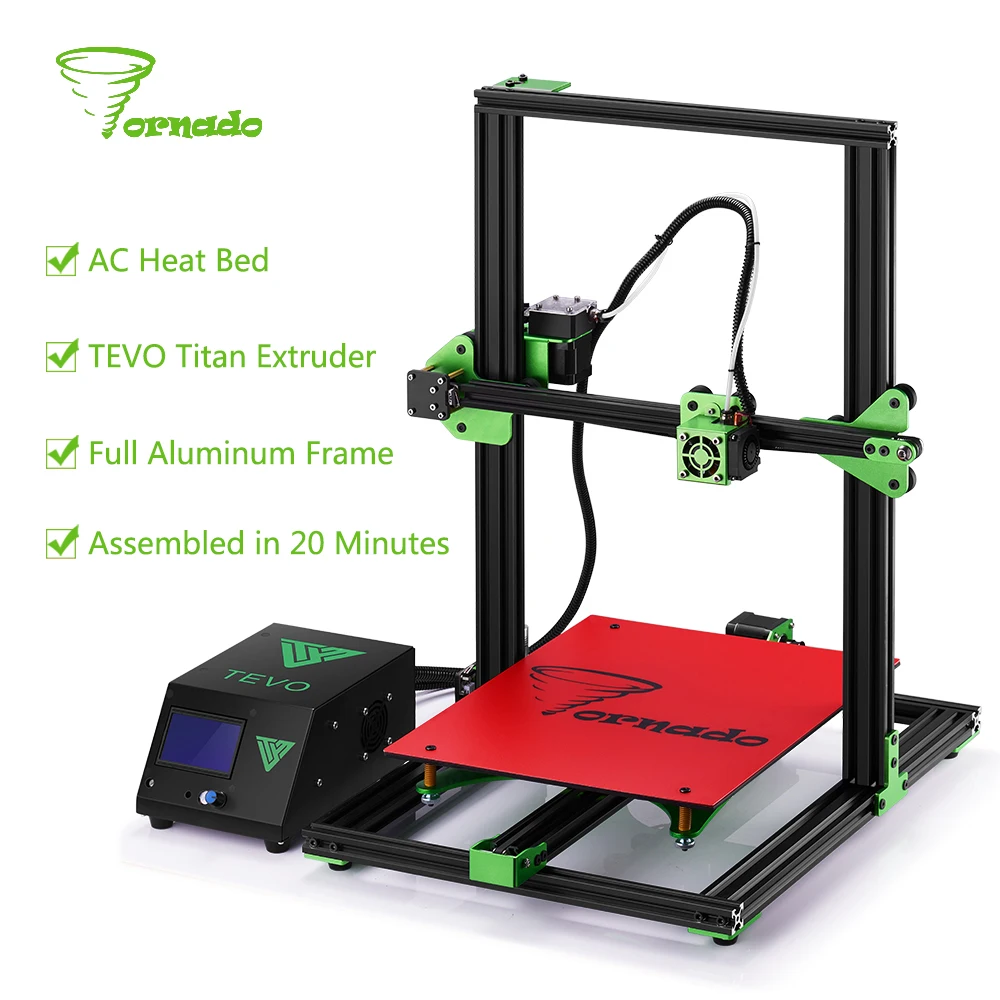

2017 TEVO Tornado Fully Assembled Aluminium Extrusion 3D Printer High Printing Quality impresora 3d printer With Titan Extruder

FOB Reference Price:Get Latest Price
US $258-265 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TEVO
Model Number:
TEVO Tornado, TEVO Tornado
After-sales Service Provided:
Overseas service center available
Voltage:
110/220V
Usage:
3D printer
Weight:
23KG
Certification:
CE. FCC . ROSH
Automatic Grade:
Automatic
Color & Page:
3D Printer
Condition:
New
Dimensions(L*W*H):
66*56*31cm
Gross Power:
250W
Plate Type:
3D Printer
Color Print Speed:
80mm/s- 200mm/s
Printing Size:
300*300*400mm
Layer Thickness:
0.05-0.4mm
Nozzle Diameter:
Standard 0.4mm(can be changed to 0.3/0.2mm)
Filaments:
1.75mm PLA ABS TPU Copper Wood Carbon
Software supporting:
PROE Solid-works UG 3d Max Rhino 3D design
File Format:
STL/OBJ/G-Code
Body Structure:

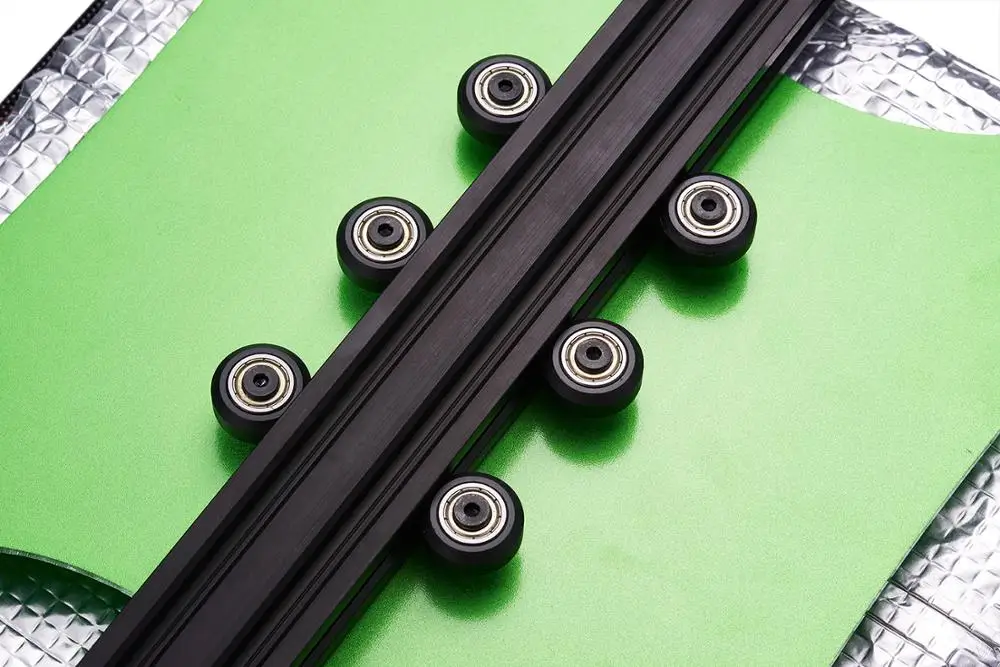

Imported V-Slot Aluminum Bearings
Printing Method:
TF card/ On Line / Off Line
Type:
Digital Printer
Packaging & Delivery
Packaging Details
wooden carton or standard carton
Port
HK/Shanghai/Guangzhou
Lead Time :
3-5 Days

2017 TEVO Tornado Fully Assembled Aluminium Extrusion 3D Printer High Printing Quality impresora 3d printer With Titan Extruder

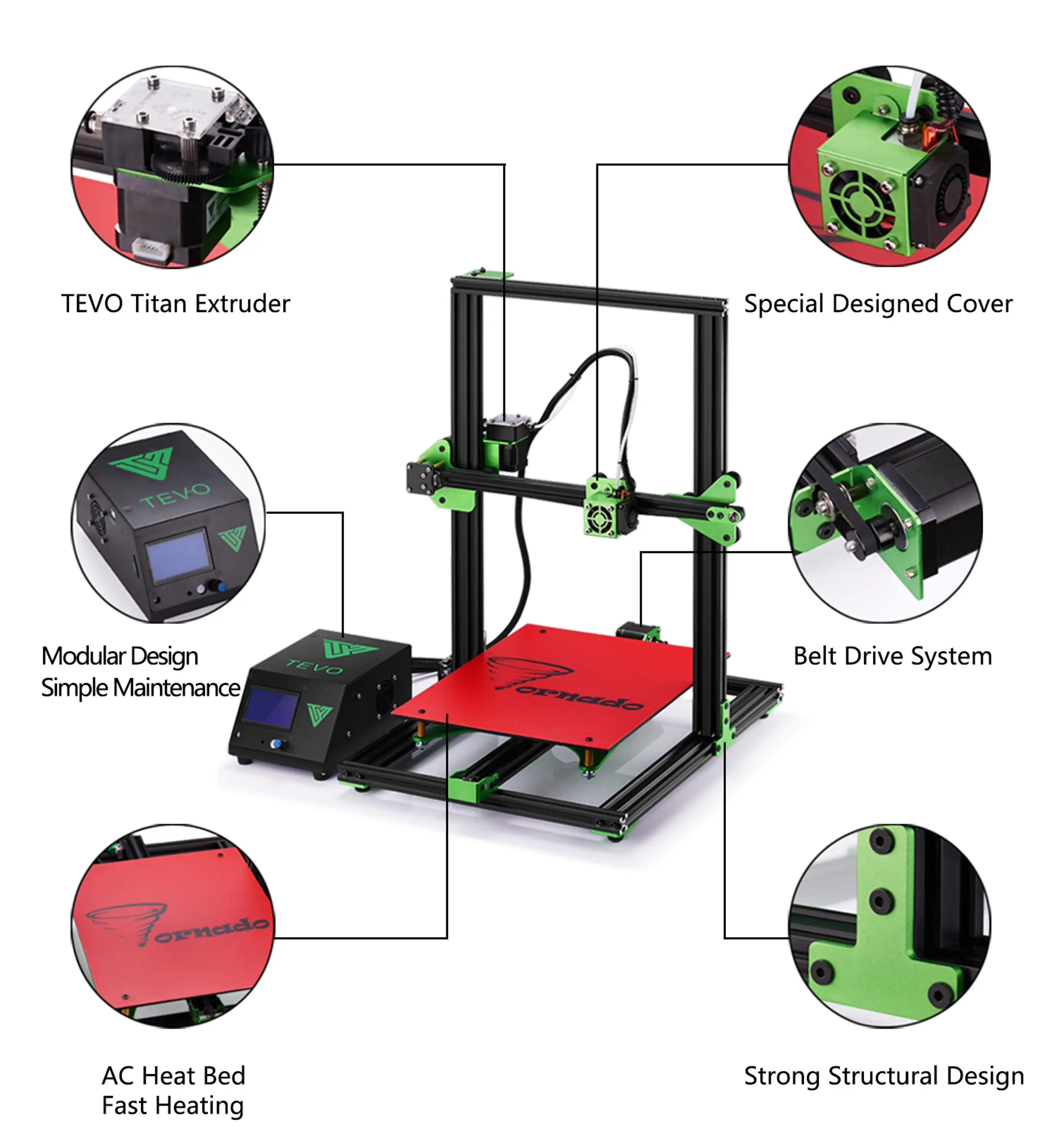

Features:


-Large Print Size: 300*300 * 400mm
-Max Print Speed:
150mm/s.

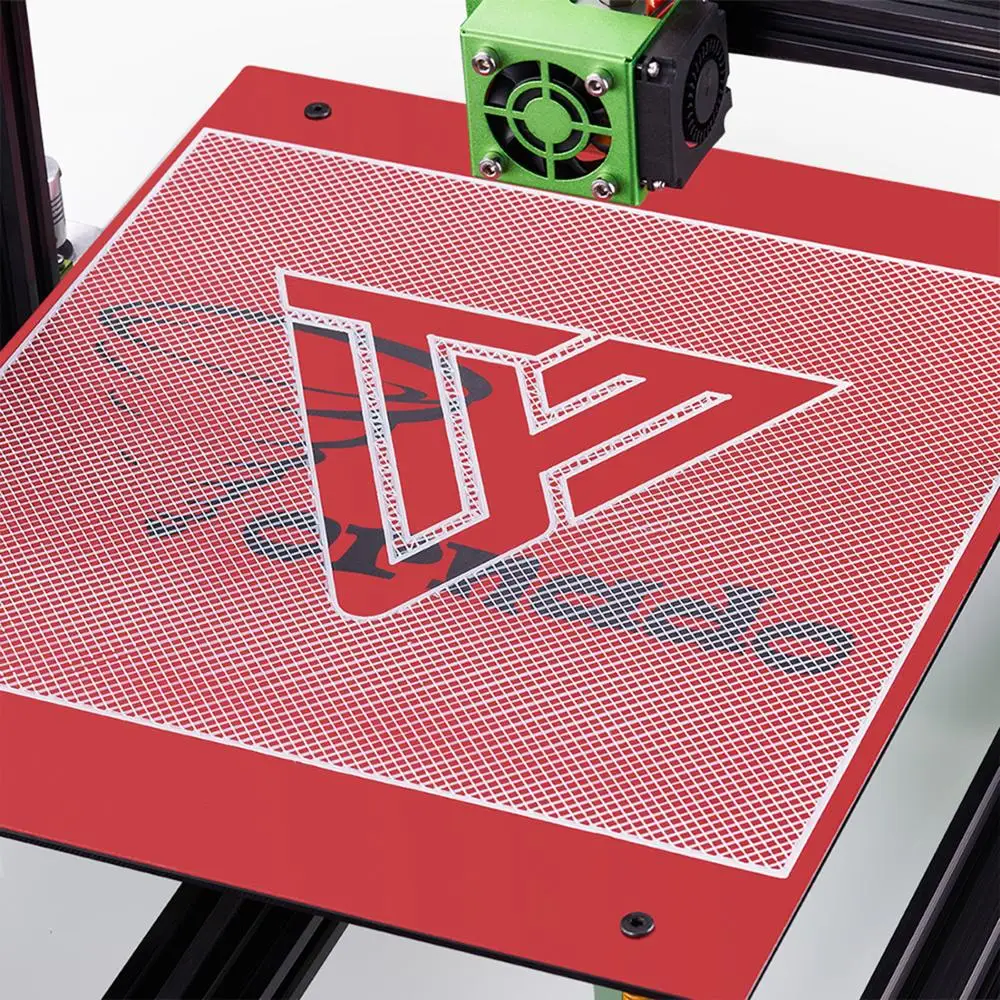

-Fast heating AC heatbed.
-High Transverse speed.

-95% Assembled, easy for installation.
-High accuracy printing quality, down to 50 microns
-Bowden style

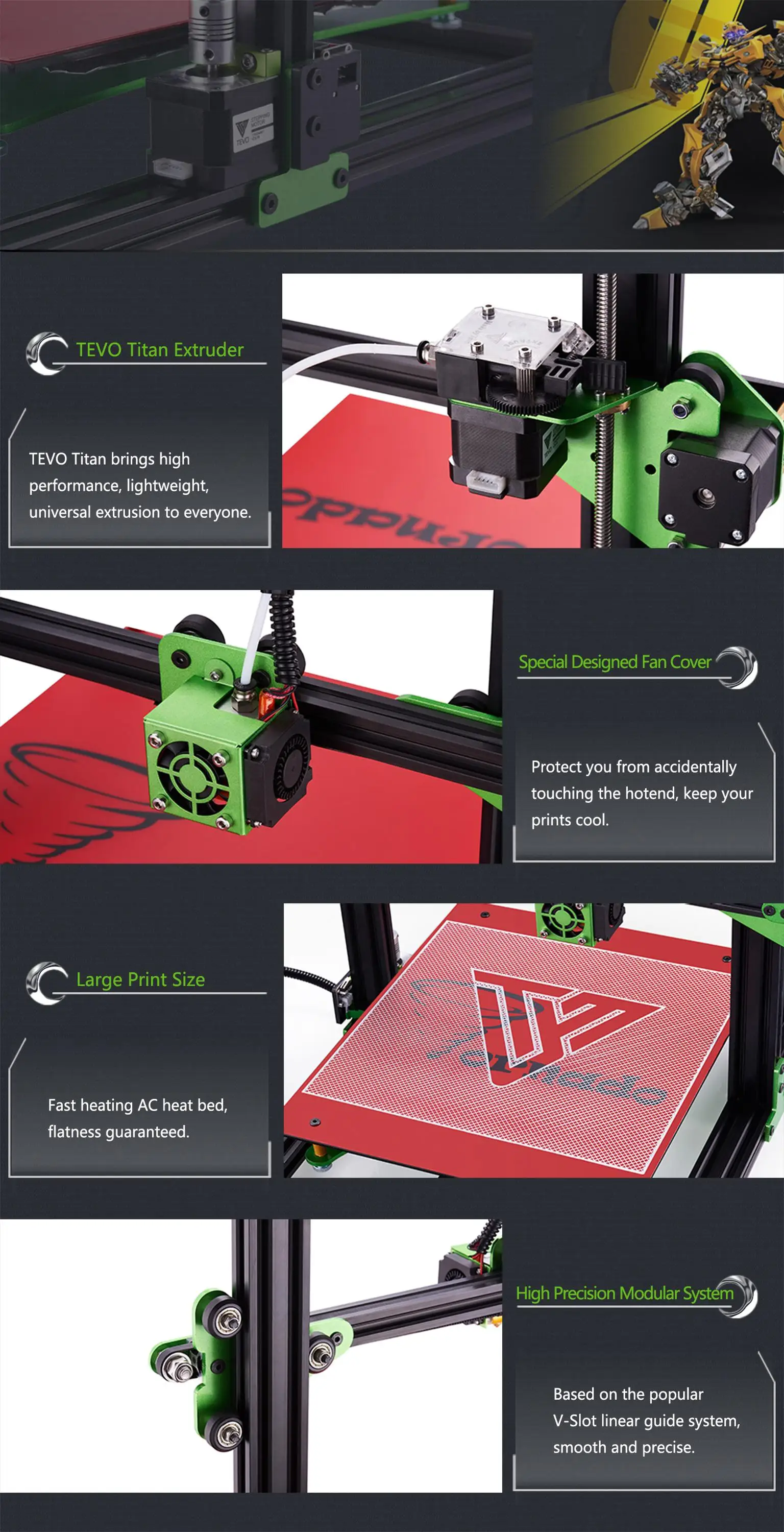

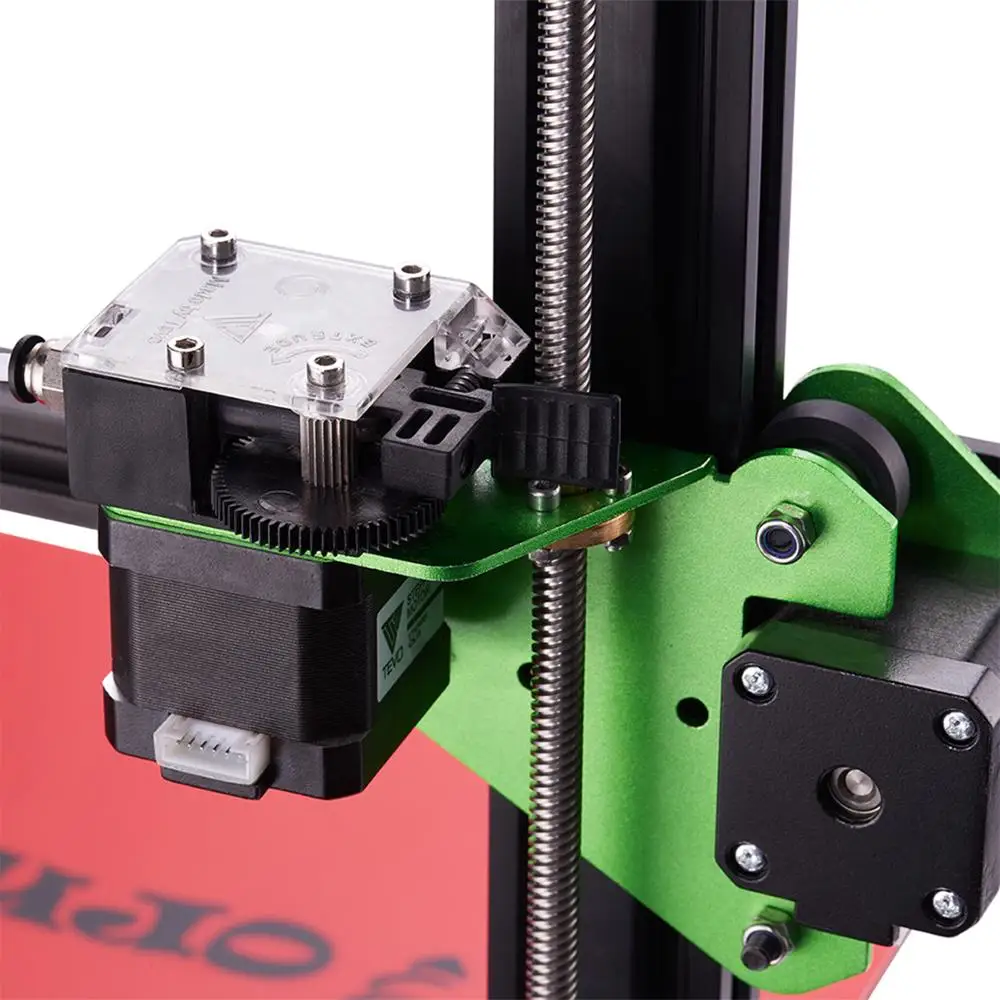

Titan Extruder with improved hotend design.
-Very stable structure with
Full Aluminum Frame design.
-Compact and small size all-in-one Powerbox with LCD control panel.



Technical Specifications:

  • Layer resolution of 50 microns.
  • MAX Printing Speed: 150 mm/s.
  • Build size: 300X 300 X 400mm.

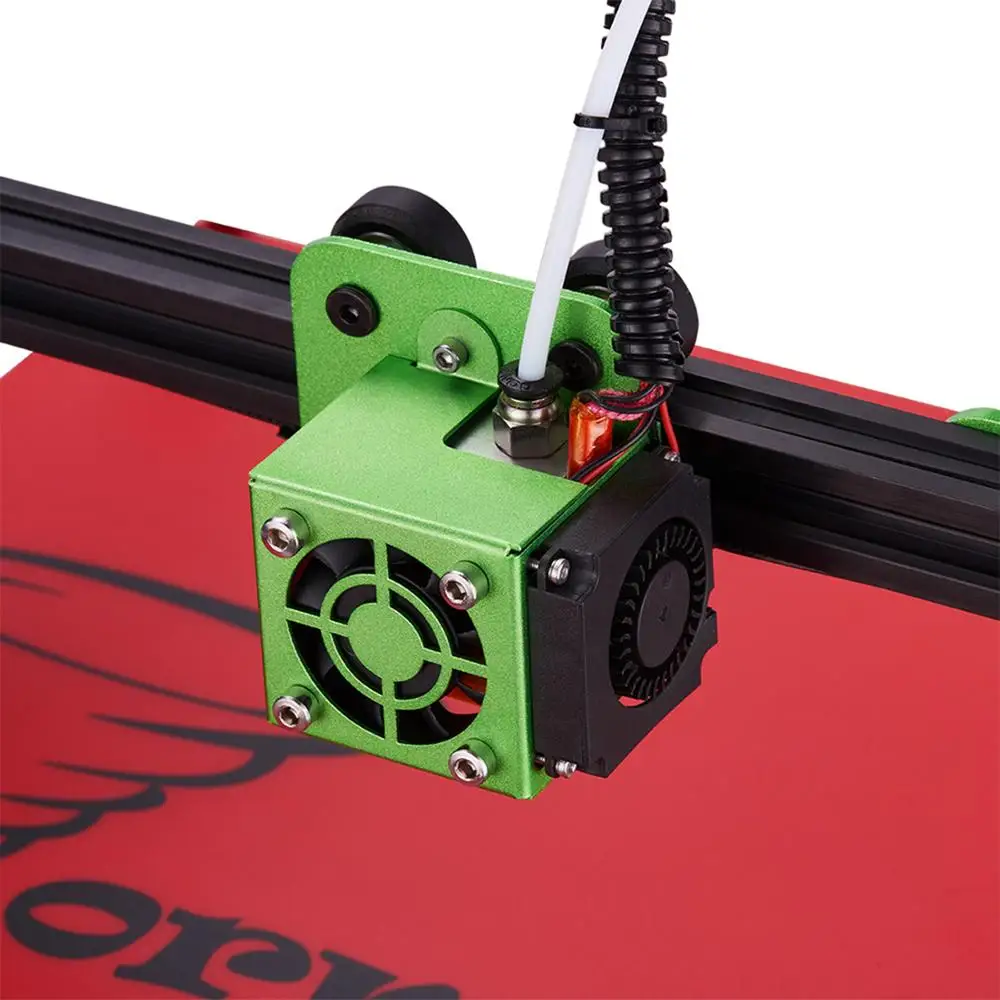

  • Full Metal E3D Bowden long distance Extruder with Titan.
  • Material type: PLA, ABS, PETG, Wood, PVA and Flexible Filaments .
  • Material specifications 1.75mm in diameter.
  • Positioning accuracy: Z 0.004mm, XY 0.012mm.
  • Printing Color: Single color.
  • Nozzle diameter: 0.4mm (customized 0.3mm/0.2mm).
  • Recommended extruder temperature: 210°C (the maximum can be set to 260°C).
  • Heating plate temperature: 60-110°C (proper winter warming and summer appropriate cooling).
  • Best ambient temperature: ≥25°C.
  • Power requirements: 220V, 250W, 50Hz, 0.89A.
  • Connection: TF card or USB.
  • The file print format: STL,G-Code.
  • Compatibility: Windows, Linux, Mac.
  • CE, FCC specifications: CE, FC, ROHS.
  • Device weight: 14kg.
  • Equipment size: 560X 600X620mm.
  • Package size: 660X 560X 310m
